AgiBot D1 Max

AgiBot D1 Max

Lightweight yet heavy-duty | Highly durable | Agile at overcoming obstacles

Figure 1 — AgiBot D1 Max in an industrial environment

Overview

The AgiBot D1 Max is a wheeled-legged quadruped robot designed as a productivity platform for industry. Combining the speed and efficiency of wheeled locomotion with the terrain adaptability of legs, it tackles slopes, stairs, obstacles and rough ground that wheeled platforms cannot, while outperforming pure-legged robots on flat surfaces. Built to IP67, rated for a 25 kg payload and powered by a hot-swappable dual-battery system, D1 Max is made for all-weather outdoor and industrial deployment — inspection, emergency response, logistics and task execution.

Built for Industry, Engineered for the Field

Enterprise-Grade Reliability

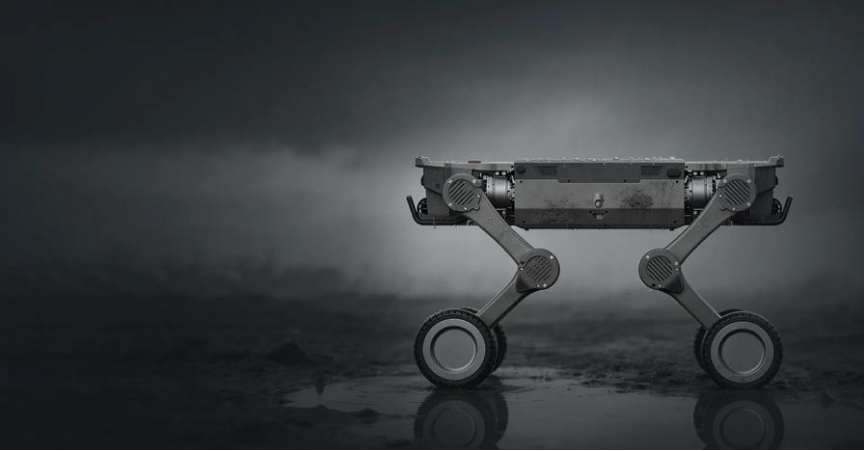

Figure 2 — Robust chassis built for harsh environments

D1 Max is engineered for stable, all-weather deployment in demanding conditions.

· IP67 ingress protection — stands up to rain, dust and humidity

· Built for long-term outdoor and industrial operation, reducing downtime and maintenance cost

Extended Operational Endurance

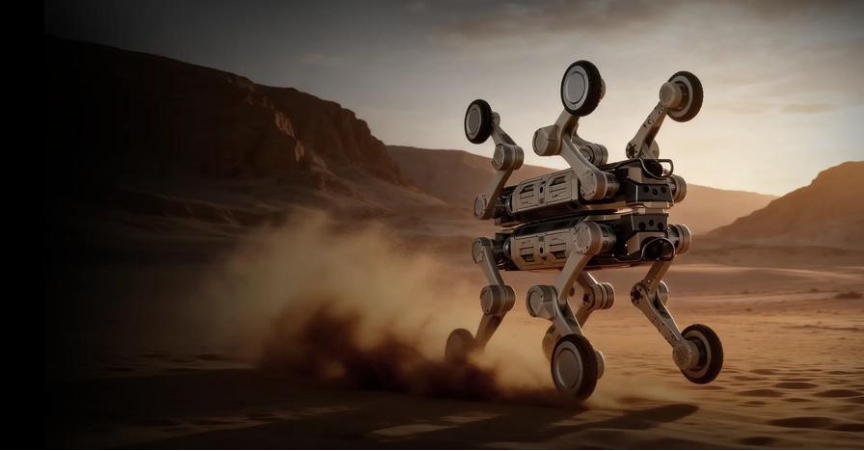

Figure 3 — Long-duration deployment at a mining site

Minimized manual intervention keeps continuous missions running.

· Battery life: >= 5 h unloaded, >= 3.5 h fully loaded

· Range: >= 29 km unloaded, >= 18 km fully loaded

Robust Payload Capacity

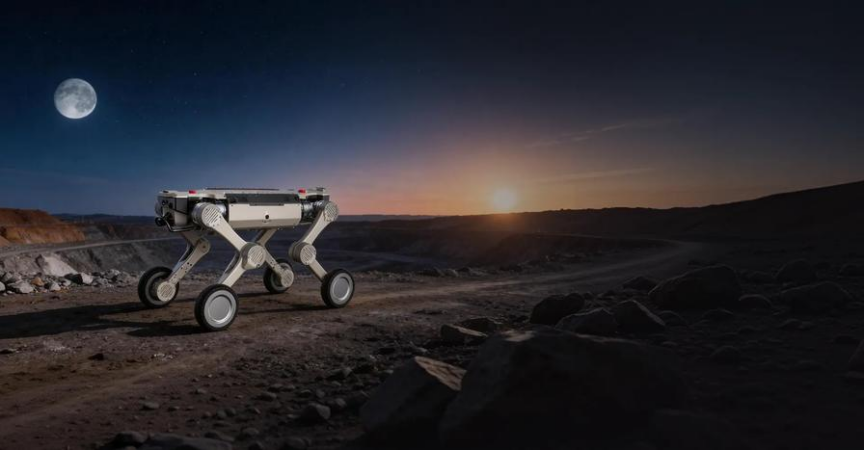

Figure 4 — Carrying payload across rough mountain terrain

A reliable heavy-load platform stable over long missions and adaptable to industry-specific tools.

· Rated payload of 25 kg across diverse task types

· Wide range of communication, power and control interfaces for flexible secondary development and deep industrial integration

Superior Mobility

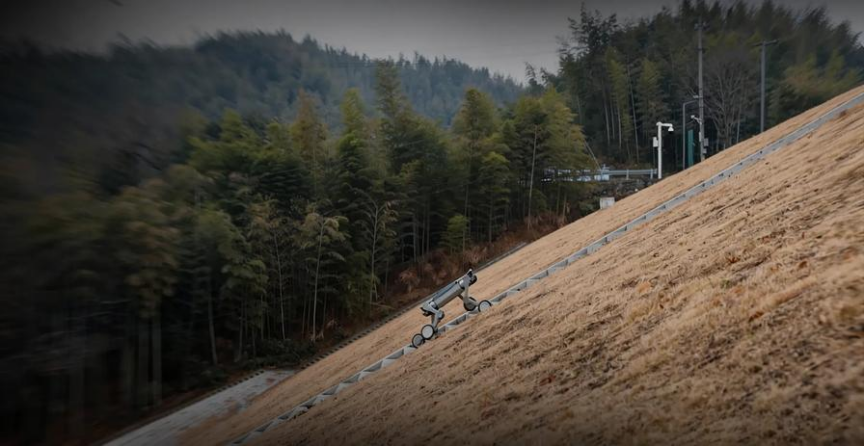

Figure 5 — Wheel-legged locomotion over extreme terrain

Fast response, broad operational coverage and high task efficiency.

· Wheel-legged structure combines speed on roads with leg-based obstacle handling

· Maximum climbing angle of 45 degrees and obstacle-crossing height of 80 cm

· Continuous stair climbing up to 25 cm steps; zero-turn maneuverability

Optimized for Large-Scale Deployment

Figure 6 — Climbing a steep embankment in leg mode

Designed to lower O&M burden and keep fleets running.

· Dual-battery hot-swap design minimizes downtime

· Intelligent wheel/leg mode switching: wheel mode for stable, efficient, long-range travel; leg mode for tough, multi-scenario terrain

Application Scenarios

D1 Max is deployed across demanding field and industrial use cases.

Technical Specifications

Note: Product appearance and color may be adjusted; refer to the actual delivered unit. Specifications are based on the official AgiBot D1 Max product page.
