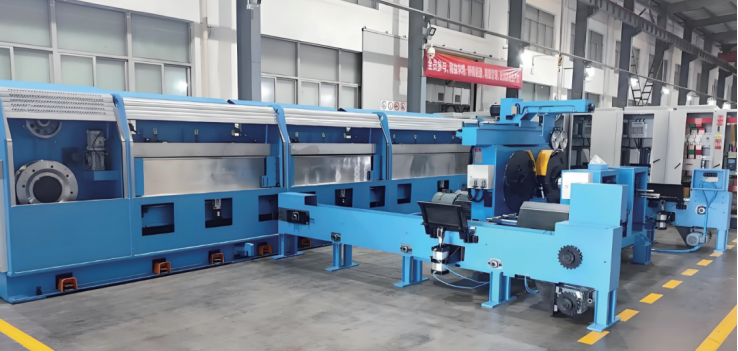

Single-head High-speed Large Aluminum Wire Drawing Machine

Item

Specifications

Incoming rod diameter

Standard aluminum: Φ9.5 mm, Φ12 mm; Aluminum alloy: Φ9.5 mm

Tensile strength of aluminum rod

Standard aluminum: ≤160 MPa; Aluminum alloy: ≤250 MPa

Output wire diameter

Round wire:Φ1.72–Φ5.2 mm (13 dies), finished wire tolerance ±0.02 mmΦ2.00–Φ5.2 mm (11 dies), finished wire tolerance ±0.02 mmShaped wire: Cross-sectional area 5~25 mm²

Output wire types

Standard aluminum / aluminum alloy(Shaped wire: arch type, Z-type, S-type, C-type, etc.)

Maximum linear speed

For standard aluminum wire Φ3.07 and below: ≥30 m/sFor standard aluminum wire Φ4.20: ≥25 m/s

Standard drawing passes (optional)

11 passes, 13 passes

Take-up reel size

PN630

Motor energy efficiency

Grade 2 or above per Chinese national standard

Die holder specification

National standard Φ53*35 mm, die base equipped with die locking function

Pay-off & take-up mode

Single head with double reels

Maximum mechanical speed

Constant speed wheel linear speed: 30 m/s

Drawing capstan diameter

Φ450 mm (1° double tapered drawing ring)

Constant speed wheel diameter

Φ560 mm (0° cylindrical drawing ring)

Wire accumulator storage length

≥5 m

Die drawing elongation ratio

1.10 ~ 1.35 (each die can be adjusted arbitrarily on demand)

Main drawing machine motors

10 or 12 units, rated speed 1500 rpm, rated power 55 kW each

Constant speed wheel motor

1 unit, rated speed 1500 rpm, power 75 kW

Take-up motor

22 kW 6-pole motor
